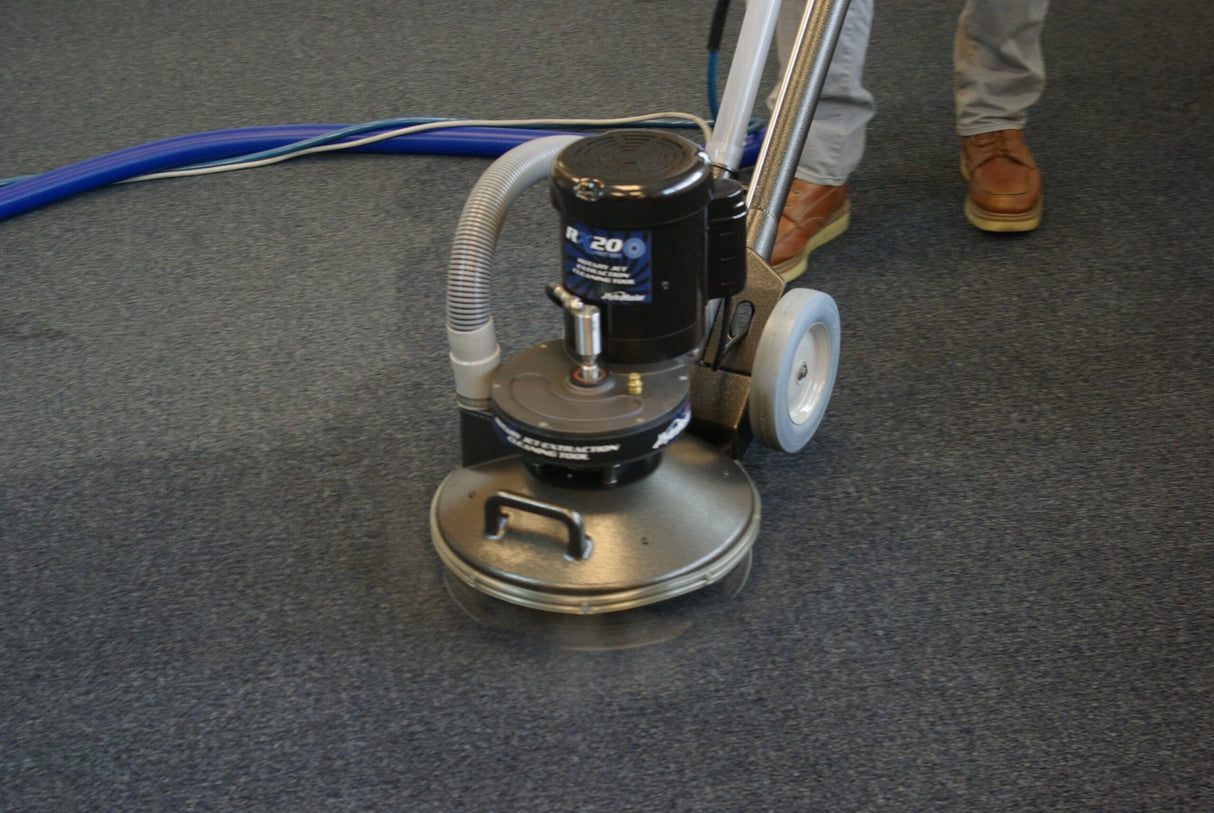

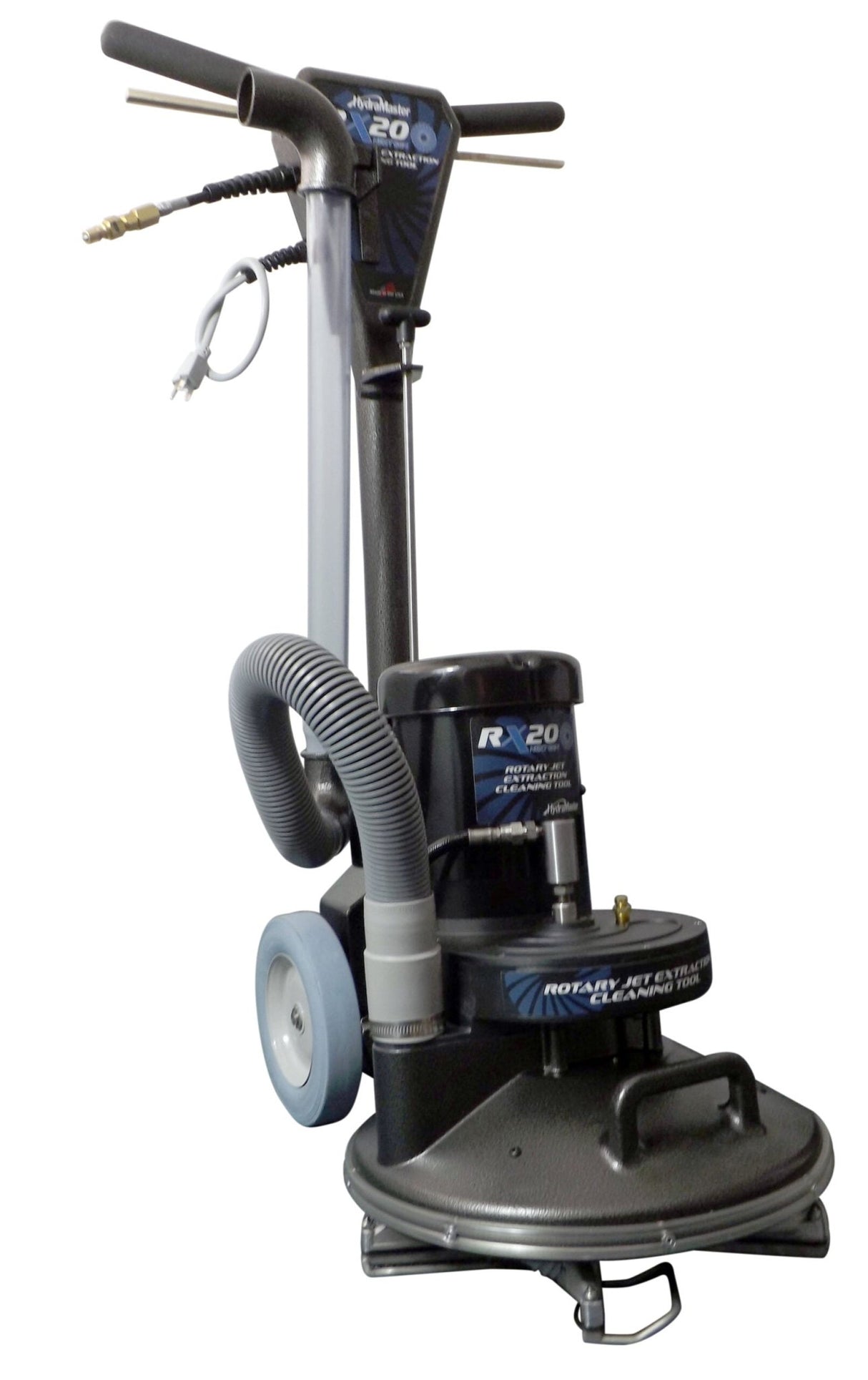

Hydramaster RX20 Rotary Extractor – Professional Carpet Cleaning Machine

The original Rotary Jet Extractor

The RX is still considered the best among many carpet cleaners as the weight of the machine allows for better agitation and dry times. The unique articulating vacuum shoes maintain continuous contact with the carpet, unlike other Rotary machines.

The latest RX20, the NEXGEN model is upgraded to produce better results while being easier to use than the original.

New features

redesigned vacuum head for more agitation

Stronger motor and gear box with heat treated gears

Improved angle adjustment

View tube allowing you see when the carpet is clean and dry

New Tile cleaning head with vacuum recovery

The HydraMaster RX20 set the industry standard for Rotary Jet Extraction® with more than 25,000 units sold over the last 35 years. Built on a legacy of superior cleaning performance, fast drying times, and reduced operator fatigue, it has long been the go-to rotary extractor for professional carpet cleaners.

Key Features & Enhancements of the RX20 NEXTGEN

• Improved handling and operator comfort thanks to an enhanced ergonomic design.

• Extended deep-cleaning reach with an on-board crevice tool that easily vacuums edges and corners.

• Clear view tube doubles as a crevice tool. The extra long view tube allows you to see the soil being extracted and is a great sales tool. Lets clients see extracted water and soil.

• Lockable On/ Off switch. Allows sustained head rotation and left-hand-only operation.

• New no-slip handle locking mechanism for greater safety and control.

• Upgraded components for longer life. Newer high quality metals and components for longer wear and durability.

How the RX20 NEXTGEN Cleans Faster and Better

The RX20 NEXTGEN rotary extractor is engineered to deliver exceptional deep-cleaning performance by attacking carpet fibers from multiple angles. It features:

• 5-pivoting vac shoes, that adapt to any surface or imperfection in the carpet. This means the machine runs smoother and extracts better.

• 5 spray jets paired with 5 independently suspended vacuum slots

• Over 650 cleaning passes per minute

• Superior agitation and weight-balanced extraction for deeper cleaning. Out cleans lighter weight units like the Rotovac 360i and Mytee Trex.

• Self-propelled action that reduces operator effort. Operates just like a floor buffer, easy to control with just your fingertips. Clean all day and barely break a sweat.

• Enhanced extraction technology for significantly faster drying times.

This powerful combination allows the RX20 Rotary Jet Extractor to clean and restore even heavily soiled or matted carpets, lifting and rejuvenating the pile while removing embedded dirt and cleaning solution. Compared to traditional carpet wands, the RX20 NEXTGEN requires only a fraction of the physical effort, making it ideal for long jobs and demanding environments.

Why Choose the HydraMaster RX20 NEXTGEN?

The RX20 NEXTGEN isn’t just an upgraded tool—it’s a leap forward in professional carpet cleaning equipment. Whether you’re looking to improve cleaning results, increase technician productivity, reduce fatigue, or impress customers with visible extraction performance, this rotary extractor delivers industry-leading results every time.

Technical Specifications

➡️ Body
  • Cast aluminum, powder-coated

➡️ Dimensions
  • Length: 23 in
  • Base Width: 16 in
  • Height: 43 in
  • Weight: 70 lbs

➡️ Motor & Power
  • Motor: 1/2 H.P. TEFC
  • Amperage: 8.6 A
  • Voltage: 120V, 60 Hz
  • European Models: 220V, 50 Hz

➡️ Gearbox
  • Permanent-lube helical drive gear for quiet operation
  • 1725 RPM input
  • 130 RPM output

➡️ Components & Wear Items
  • Replaceable steel spring arms
  • Five (5) cast-aluminum heads
  • Replaceable stainless-steel wear shoes
  • Stainless-steel 80015 T-Jet nozzles

➡️ Cleaning Performance
  • High-pressure stainless-steel system
  • Five (5) rotating heads at 130 RPM
  • Approximately 650 cleaning passes per minute

➡️ Handle Assembly
  • Adjustable height
  • Foam-grip handles

➡️ Transportation / Wheels
  • 8" diameter, 1.5" wide
  • Grey, non-marking, non-tracking wheels

➡️ Electrical Cord
  • 50 ft, 14/3 gauge

➡️ Made in USA
  • Proudly made in Washington State
